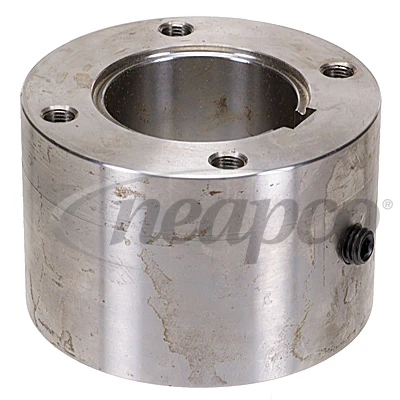

N3-1-1023-2 Driveshaft Companion Flange

(No reviews yet) Write a Review

Part Number

N3-1-1023-2

Bolt Circle (in):

3.750

Bore Dia. (in):

2.125

Driveline Series:

1350-1410

Flange Type:

Large

Hole Dia./Thread Size (in)(mm):

7/16-20

Keyway (max):

0.503

Keyway Width (in)(mm):

0.500

Number Of Bolt Holes:

4

Outside Diameter (in):

4.562

Overall Length (in):

3.000

Pilot Diameter (in)(mm):

2.750

Set Screw Hole Size (in):

3/8-16

N3-1-1023-2 Driveshaft Companion Flange
