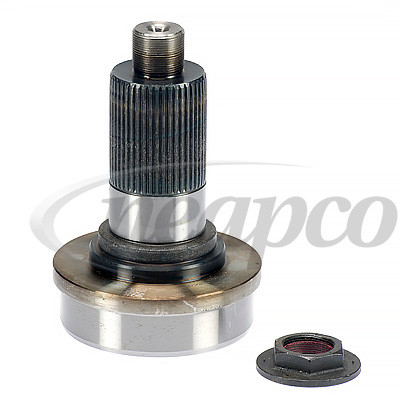

N250-53-11 Driveshaft Midship Stub Shaft

(No reviews yet) Write a Review

Part Number

N250-53-11

Brg. Dia. (in):

2.362

Brg. Shoulder Dia.(in):

2.875

Butt Diameter (in):

4.750

Driveshaft Nut:

N20-74-91

End Of Spline To Brg. Shoulder (in):

4.000

End Of Spline To Point Of Weld (in):

5.312

Length Of Shoulder (in):

0.812

Length Of Spline (in):

2.719

Spline Od(in)/no. Teeth:

2.350-46

Thread Size (in)(mm):

1.250-18-M UNEF

Tubing Diameter And Wall (in):

5.196 X .236

N250-53-11 Driveshaft Midship Stub Shaft
